:: Showing 6 Results

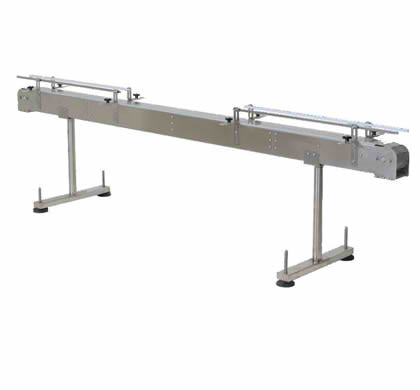

C-Frame 304 Stainless Steel Power Conveyor

MODEL #: CON-CFRM

The traditional stainless steel C-Frame power conveyor from Liquid Packaging Solutions comes standard with a 4.5" chain in lengths of 5, 10, 15 and 20 feet, with custom lengths available. The stainless steel construction of this automatic conveyor allow it to handle heavier weights and make it ideal for conveying almost any product down a packaging line.

PRODUCT DETAILS

Spec. Sheet

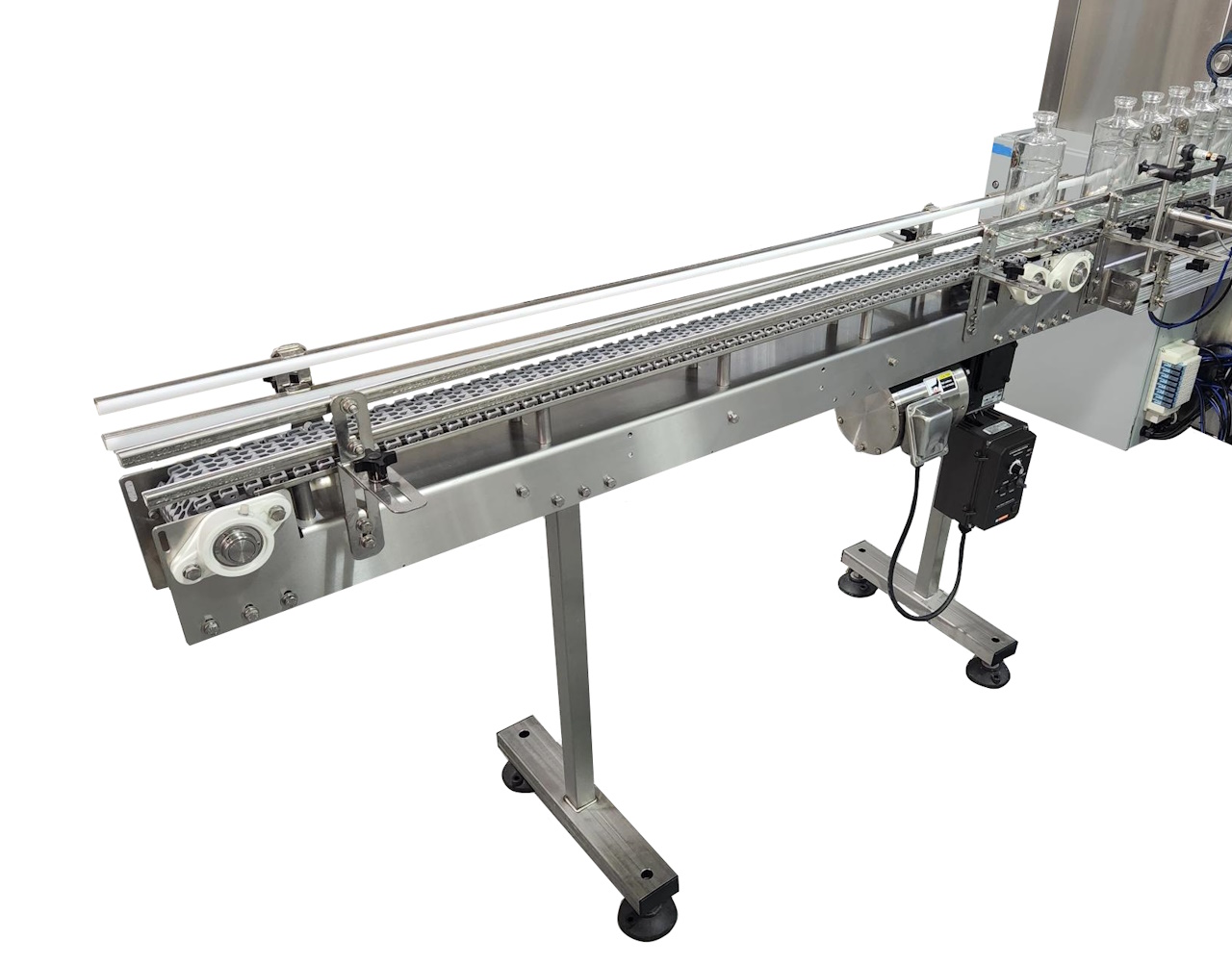

Stainless Steel Sanitary Style Power Conveyor

MODEL #: CON-RBLT

The stainless steel sanitary style power conveyor from Liquid Packaging Solutions is manufactured with a raised belt and an upside down U-shaped design for protection against spills and easy cleanup. Sanitary style power conveyors are ideal for food grade and dairy products but will also convey almost any product!

PRODUCT DETAILS

Spec. Sheet

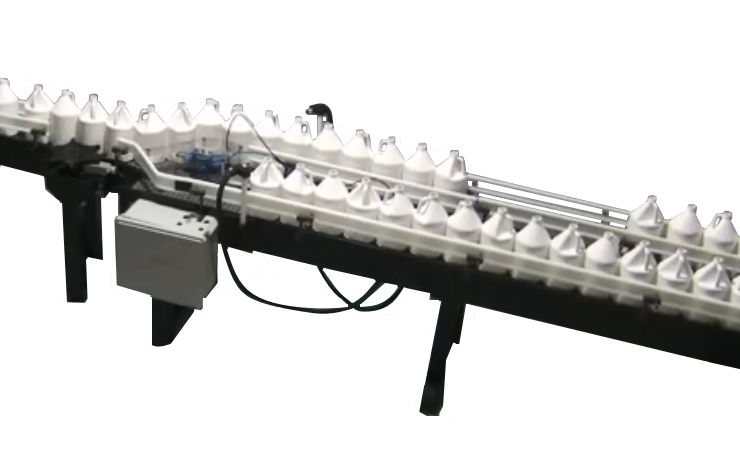

High Density Polyetheylene (HDPE) Acid Resistant Power Conveyor

MODEL #: CON-HDPE

High Density Polyetheylene (HDPE) Power Conveyors from Liquid Packaging Solutions offer conveying options for production facilities and environments using acids, bleaches and other corrosive chemicals. HDPE belt conveyor systems are available in 5', 10', 15', 20' and custom lengths for any application that requires corrosion resistant packaging machinery.

PRODUCT DETAILS

Spec. Sheet

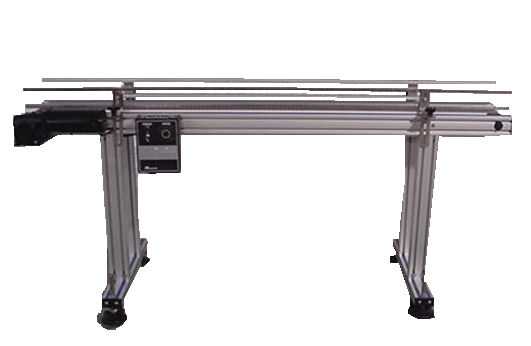

Low Profile Anodized Aluminum Power Conveyor

MODEL #: CON-ALUM

Low profile power conveyors are manufactured by Liquid Packaging Solutions using anodized aluminum for increased corrosion and wear resistance. Low profile refers to the short distance from the bottom of the belt conveyor frame to the top of the conveyor belt as well as the distance between the edge of the conveyor belt and the edge of the conveyor frame. The compact design allows this automatic belt conveyor to fit into tight spaces in and around packaging machinery!

PRODUCT DETAILS

Spec. Sheet

Indexing Loading Conveyor

MODEL #: CON-IDX

The indexing loading conveyor from Liquid Packaging Solutions uses a wide conveyor belt and adjustable container lanes to move accumulated containers into a single line. Each line of containers is then pushed via a rodless air cylinder onto a take away belt conveyor system for filling, capping, labeling or any other packaging process.

PRODUCT DETAILS

Spec. Sheet

Single Filer Loading Conveyor

MODEL #: CON-FIL

The single filer loading conveyor from Liquid Packaging Solutions allows the placement of up to two pallet size sheets of containers onto the conveyor bed. The power conveyor then uses rail slides, three variable speed conveyor belts and an anti-jam conveyor belt to merge the containers into a single lane for conveying through a packaging system.

PRODUCT DETAILS

Spec. Sheet

Variable speed power conveyors from Liquid Packaging Solutions are manufactured using stainless steel, aluminum or HDPE to allow the belt conveyor systems to be designed specifically for each customer's individual needs. Conveyor line height and conveyor width, in addition to construction material, will be customer specific.

Specialty conveyors for filing bottles onto a production conveyor, for indexing containers and custom manufacturing of any power conveyor system, without the long lead times, are always available for unique containers and/or projects.
