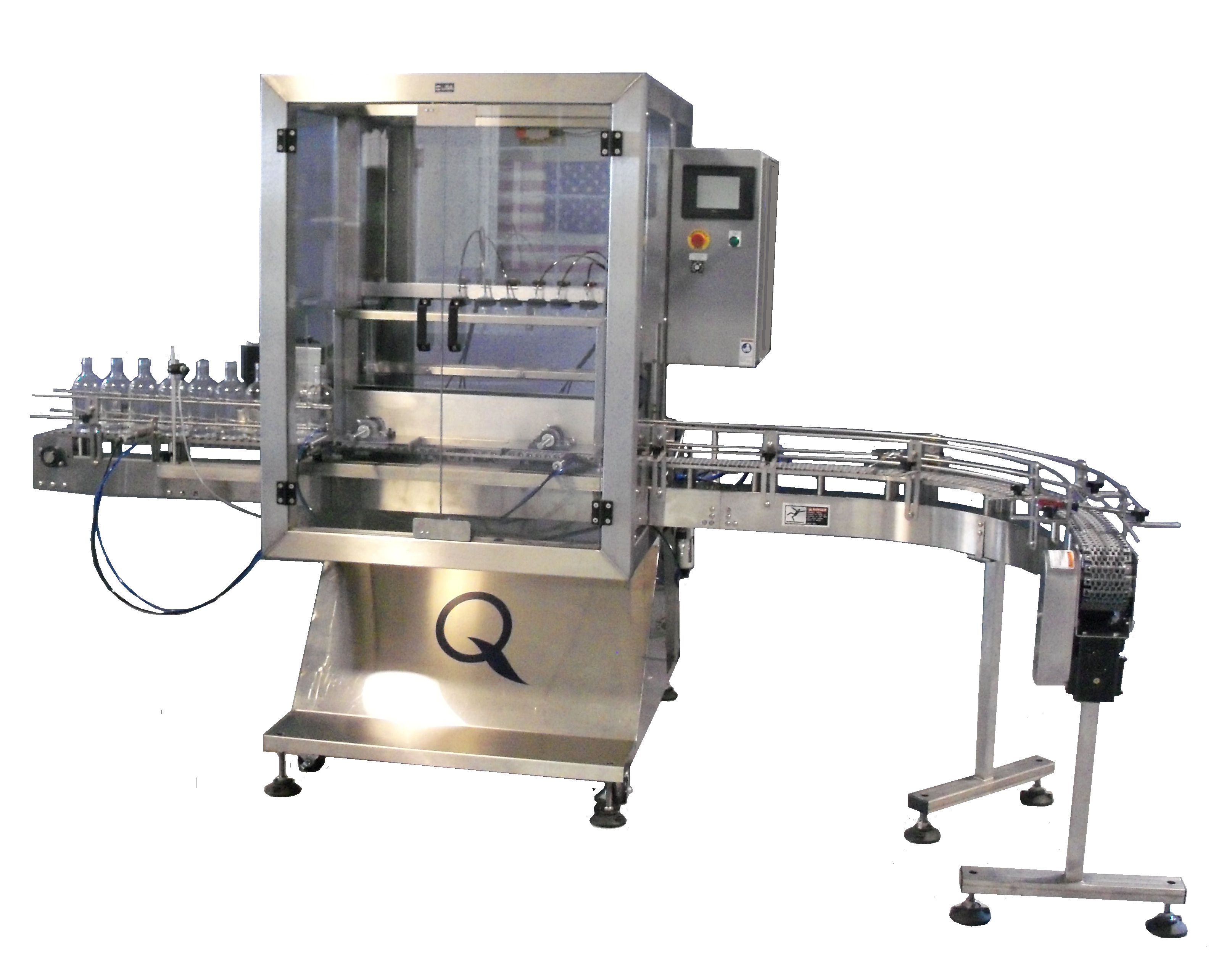

Automatic Rinsing Machine - Wet Rinser


The Automatic Wet Rinser allows for continuous container cleaning on an inline packaging system.  Containers are indexed into the rinsing machine, inverted over a rinse basin and rinsed using a customer supplied rinse media.  PLC Controlled settings on the rinsing machine also allow for up to 10 recipes to be saved and loaded at a later time, allowing quick set up of the wet rinser for commonly run containers.

Spec Sheet Quote Request

Automatic Rinsing Machine - Wet Rinse
  • Heavy duty portable stainless steel frame
  • Pin indexing system
  • Allen Bradley Micrologix PLC with touch screen operator control
  • 10 memory locations
  • Overall electronic production counter
  • Missing bottle and Anti-bottle backup vision systems
  • Soft pad bottle grippers
  • 1-12 rinse heads
  • Adjustable high pressure jets for 1 ounce to 1 gallon containers
  • 10' variable speed conveyor
  • Upgradeable
  • Made in the USA
  • Air knife
  • Air rinsing systems
  • Various indexing systems
  • Hazardous location/environment construction - Class I, Division II, Groups C & D
  • Anodized aluminum frame
