Automatic Capping Machine - Chuck Capper

Model#: CAP-CHUCK-AUTO

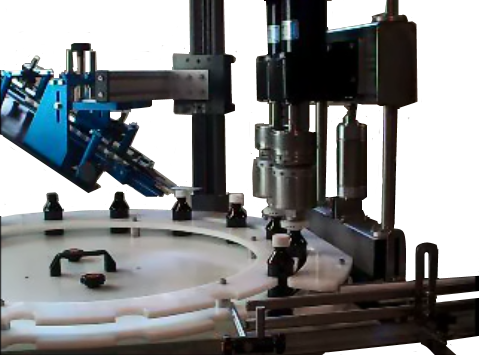

The Automatic Chuck Capping machine from Liquid Packaging Solutions offers an ideal solution for packaging projects using screw-on type closures, also known as continuous thread caps. Utilizing a starwheel, this automatic capper utilizes one or multiple chuck heads to descend on the bottle and cap as they move in to position under heads on the starwheel. The chuck heads apply torque to the bottle and cap combination to create a consistent and reliable seal before moving capped containers along the starwheel to a release point.

Automatic chuck cappers will use an automatic cap delivery system, such as a sorting bowl, and a chute to provide closures to the bottles just prior to the chuck heads, removing the need for an operator to place caps on each bottle.

Spec Sheet Quote Request

Automatic Chuck Capping Machine - Multiple Heads and Starwheel Indexing

PLC controls
Starwheel indexing
Cap sorting bowl
Cap chute
One or multiple capping heads
Made in the USA

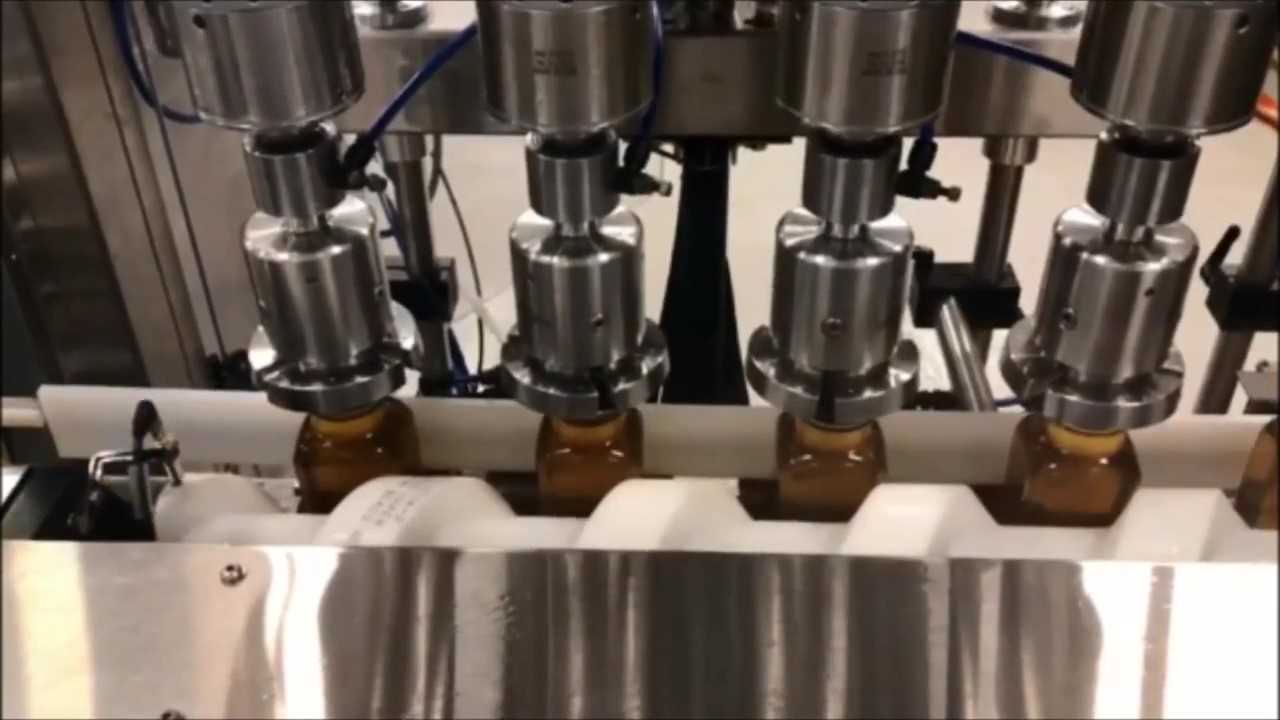

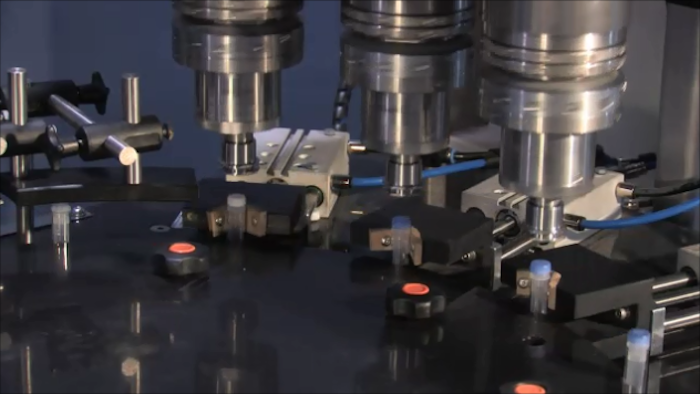

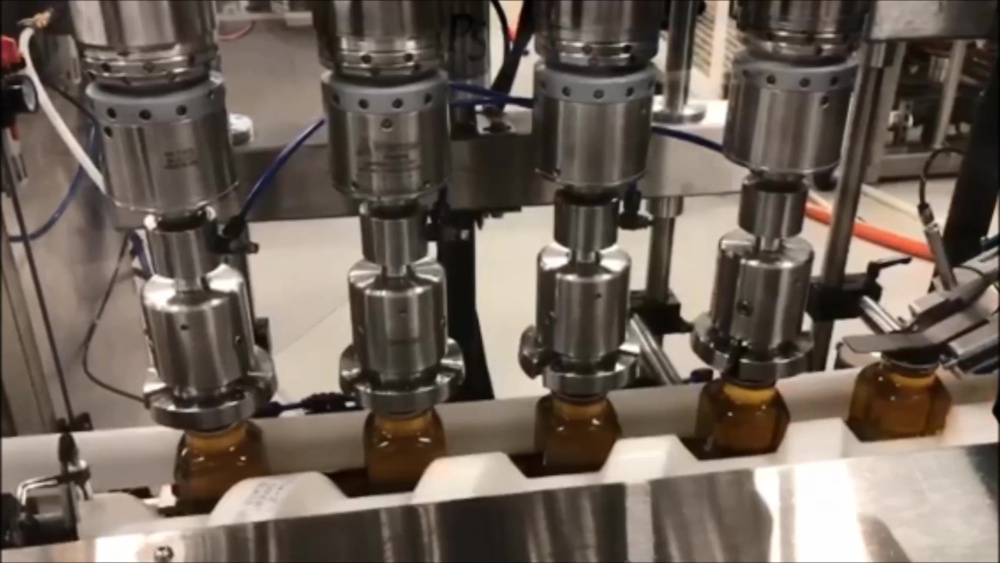

Multiple Capping Heads

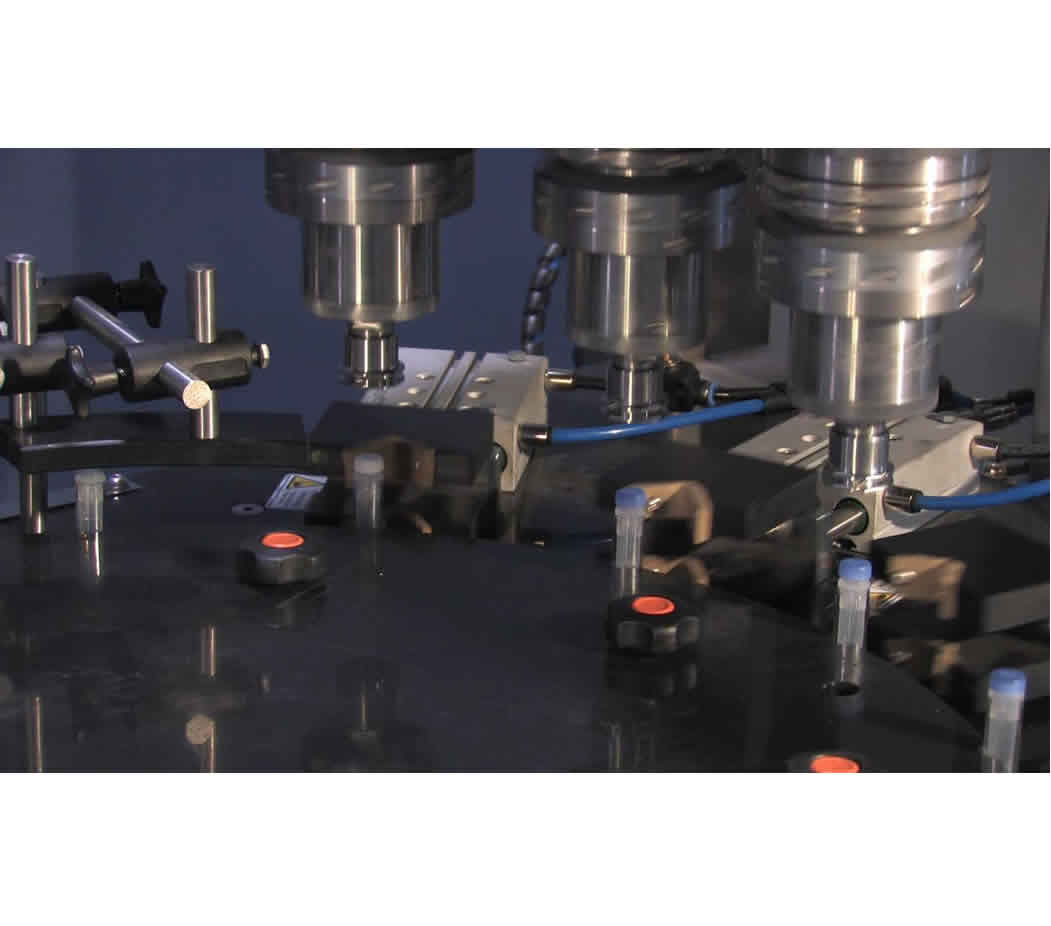

Various Chuck Sizes

Common Liquid Types	Viscosity Low	Viscosity High
Water @ 70° F	1	5
Blood or Kerosene	10	10
Anti-Freeze or Ethylene Glycol	15	15
Motor Oil SAE 10 or Corn Syrup	50	100
Motor Oil SAE 30 or Maple Syrup	150	200
Motor Oil SAE 40 or Castor Oil	250	500
Motor Oil SAE 60 or Glycerin	1000	2000
Karo Corn Syrup or Honey	2000	3000
Blackstrap Molasses	5000	10,000
Hershey Chocolate Syrup	10,000	25,000
Heinz Ketchup or French's mustard*	50,000	70,000
Tomato Paste or Peanut Butter	150,000	200,000
Crisco Shortening or Lard	1,000,000	2,000,000
Caulking Compound	5,000,000	10,000,000
Window Putty	100,000,000	100,000,000+
