Automatic Filling Machine - Piston Filler

Model#: FIL-PI-POR

The Automatic Piston Filler is an ideal solution for filling liquids, semi-solids and products with particulates, and will almost always be the machine of choice for high viscosity products.  The automatic piston filling machine features a large product hopper and the piston size will be matched to the container or project at hand.  Given that the piston and cylinder do not change in size from cycle to cycle, these machines provide a highly accurate volumetric fill.

Spec Sheet Quote Request

Automatic Piston Filling Machine from Liquid Packaging Solutions
  • Heavy Duty Portable Stainless Steel Frame
  • Allen Bradley Micrologix PLC with touchscreen operator control system
  • Power Height Adjustment
  • Up To 12 Cylinders/Fill Heads
  • Product Supply Hopper
  • Various Piston Sizes
  • Upgradeable
  • Missing Bottle and Anti-Bottle Backup Vision Systems
  • Tool Free Adjustments
  • Made in the USA
  • Semi-Automatic Machine
  • Automatic Drip Tray
  • Bottle Grabbers - Neck Grabbers
  • Various Indexing Systems - Pin or Gate, Timing, Screw, Starwheel and Shuttle
  • Hazardous Location/Environment Construction - Class I, Division II, Groups C&D
  • Larger Hopper
  • Heated Hopper
  • Heated Valve Block
  • High Temperature Applications
  • Level Control System
  • Diving Head Nozzles
  • Product Agitation and Mixing
  • Teflon Contact Parts
  • Wash Down Motors and Controls
  • Various Fill Ranges

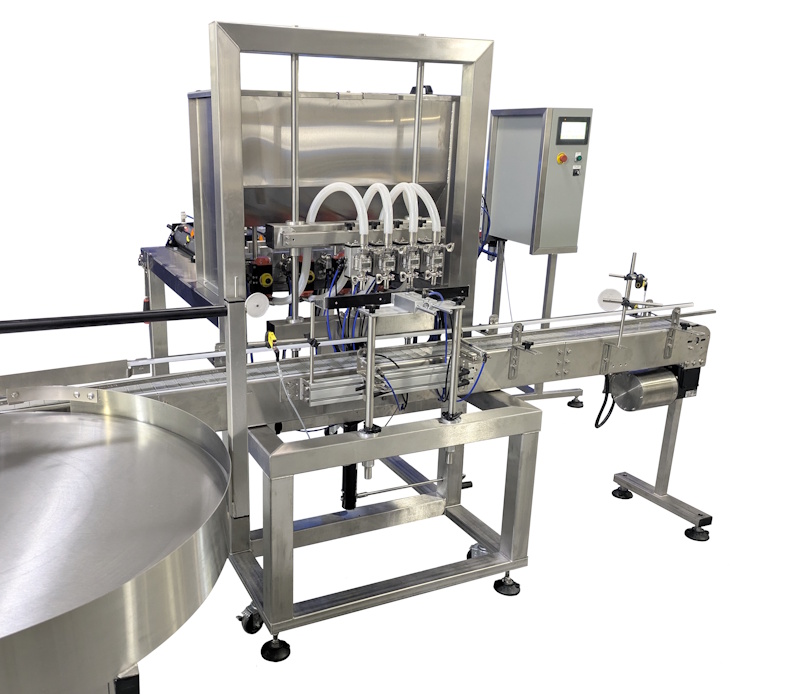

Automatic Piston Filling Machine
Automatic Piston Filler - Small Bottles
Automatic Piston Filling Machine - Paint

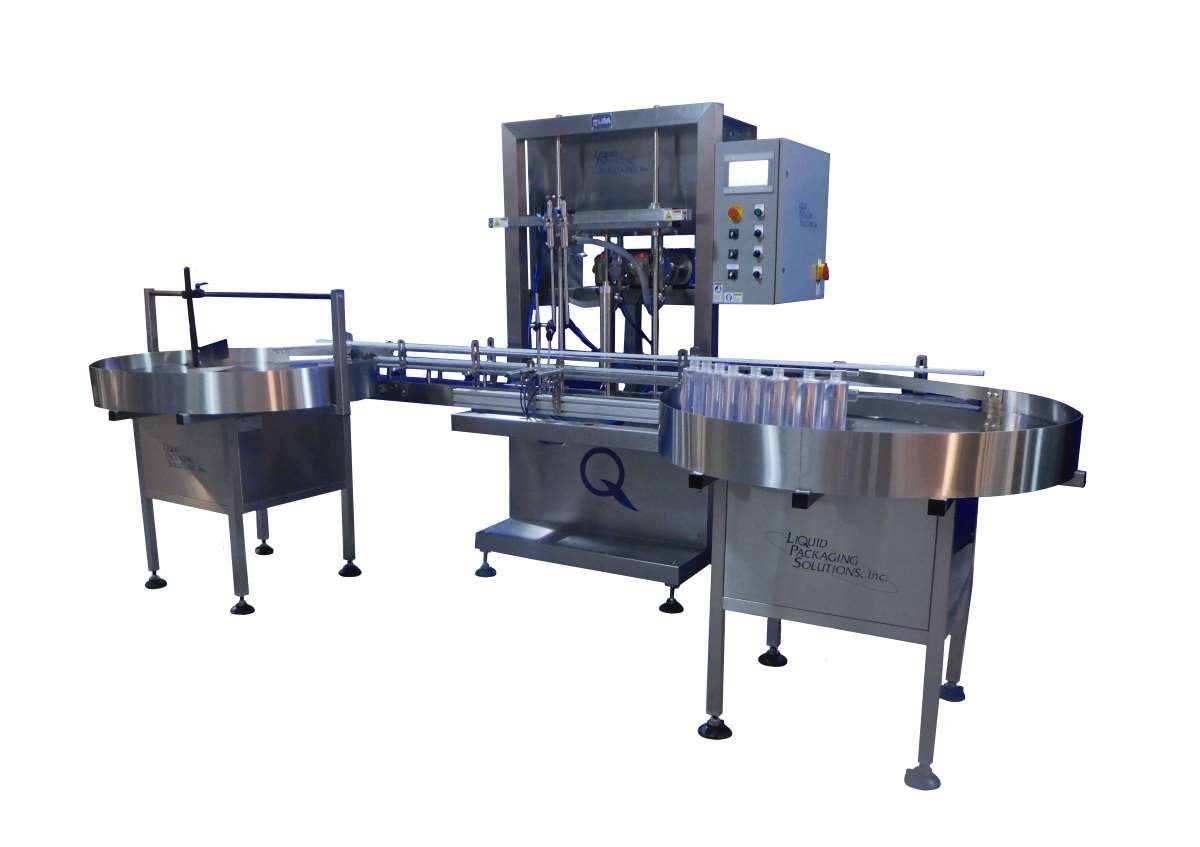

Automatic Piston Filler - Horseshoe Line
